The A528 is an OEM UHF multiregional compact reader for integration into label printers, label applicators, handheld devices and in general any fixed or mobile short and medium range device requiring UHF tag programming and reading.
The A528 complies with and can operate in both European (ETSI EN 302 208) and US (FCC part 15) regulatory environments. It is programmable up to 500 mW conducted power.
The reader supports EPC Class1 Gen2 protocol.
The module uses the Intel® UHF RFID Transceiver R1000 and features a Gen2 Dense Reader Mode capability.
Due to its multiregional capabilities the A528 is ideal for integration in devices requiring compliance to different geographic regions. A service board (Mod. A528ADAT), which allows to manage the A528 via USB and RS232, is available.

Applications:
- Handheld devices
- Multiregional Label Printers and Applicators
- Point of sales devices
- Voice operated gloves
- Vehicle access control systems
- Pick and put away applications

The A828 is a multiprotocol OEM compact module for integration into label printers, label applicators, handheld devices and in general any fixed or mobile short range device requiring UHF tag programming and reading.
The A828 is available either in ETSI or FCC version. The ETSI version is fully compliant to the European Regulation ETSI EN 300 220 (869.525 MHz), while the FCC to the US telecommunication regulation FCC part 15 (902-928 MHz).
The reader supports ISO 18000-6B, Philips UCODE EPC 1.19 and EPC Class1 Gen2. Other UHF protocols may be available by firmware upgrade.
The A828 is ideal for integration in portable battery powered devices thanks to its compact size, low power consumption and power saving modes.
Service boards (Mod. A827 and A943), which allows to manage the A828 via USB and RS232, are available.

Applications:
- Handheld devices
- Label Printers and Applicators
- Point of sales devices
- Voice operated gloves
- Pick and put away applications

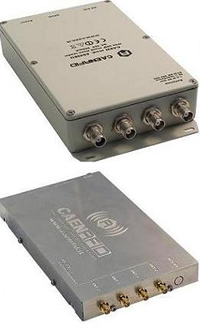

The A941 OEM is a multi protocol long range reader module developed for OEM applications and designed to be integrated into a user’s infrastructure/ devices requiring UHF tag programming and reading. The A941 is available either in ETSI or FCC version. The ETSI version is fully compliant to the European regulations ETSI EN 302 208 and ETSI EN 300 220, the FCC version to the US telecommunication regulation FCC part 15 . The A941 suppor ts Philips UCODE EPC 1.19, ISO 18000-6B, and EPC Class1 Gen2. Other UHF protocols may be available by firmware upgrade. The A941 is available either as an OEM module, for customers who want to design their own RFID solution and require a long range RFID readerengine, or in IP65 enclosure to meet the demands of rough industrial environment, including warehouse and vehicle mount applications.

Applications:
- Vehicle mounting
- Industrial controls
- Pick and put away applications
- Vehicles access control systems
- RFID tunnels
- Portal applications

The A928 is a multiprotocol long range reader developed in Europe fully compliant to the European ETSI EN 300 220 (869.525 MHz) regulation.
Capable of long distance reading using extremely low RF energy,the A928EU has been optimized to increase receiver sensibility and reduce transmitter noise. The A928 can cover distances of 5-6 meters (16-20 feet) with our A918 universal mounting passive tags.
The A928’s open architecture uses a multi-protocol technology.
The protocol interface was developed using a Field Programmable Gate Array which allows easy modification of the protocol definition. On the host side, a powerful 32bit micro-controller enables fast firmware updating for maximum upgradeability to future generations of UHF protocols.
Easily integrated with most popular database software and fully compliant to Philips UCODE EPC 1.19, ISO 18000-6B and EPC Class1 Gen2 protocols, the A928 can be used in conjunction with any tag compliant to the same standards.

Applications:
- Industrial controls
- Pick and put away applications
- Vehicles access control systems
- RFID tunnels
- Portal applications

The A941 is a multi protocol long range reader module developed for OEM applications and designed to be integrated into a user’s infrastructure/ devices requiring UHF tag programming and reading. The A941 is available either in ETSI or FCC version. The ETSI version is fully compliant to the European regulations ETSI EN 302 208 and ETSI EN 300 220, the FCC version to the US telecommunication regulation FCC part 15 . The A941 suppor ts Philips UCODE EPC 1.19, ISO 18000-6B, and EPC Class1 Gen2. Other UHF protocols may be available by firmware upgrade. The A941 is available either as an OEM module, for customers who want to design their own RFID solution and require a long range RFID readerengine, or in IP65 enclosure to meet the demands of rough industrial environment, including warehouse and vehicle mount applications.

Applications:
- Vehicle mounting
- Industrial controls
- Pick and put away applications
- Vehicles access control systems
- RFID tunnels
- Portal applications

Model A948 is the evolution of CAEN long range UHF reader A928.
It is optimized for full portal installation featuring full power to up to 4 antennas, full network interfaces, Gen2 DRM management, LBT capability and high speed Gen2 read rates. It maintains the A928 multi-protocol technology and firmware / protocol upgradeability.
The A948 is available either in ETSI or FCC version. The ETSI version is fully compliant to the European regulations ETSI EN 302 208 and ETSI EN 300 220, the FCC version to the US telecommunication regulation FCC part 15.
The A948 is a multi-protocol module, it supports Philips UCODE EPC 1.19, ISO 18000-6B and EPC Class1 Gen2. Other UHF protocols may be available by firmware upgrade.
he A948 full compliance with EPC Gen2, its full range of interfaces, its long range and full power to up to four antennas, make it the perfect solution for full portal/gate RFID installations.

Applications:
- Industrial controls
- Pick and put away applications
- Vehicles access control systems
- RFID tunnels
- Portal applications

The CAEN A828BT is a UHF portable reader compliant with ISO 18000-6B and ISO 18000-6C/EPC C1G2 standards. Thanks to Bluetooth communication the A828BT can be a perfect add-on to any bluetooth device such as PC, Smart Phone, PDA, Blackberry for proximity UHF readings.
The A828BT can operate either in wired mode, using the USB connection, or in wireless mode through the Bluetooth.
This new CAEN RFID reader is a cost effective solution which merges two wireless technologies aimed to support fi eld sales force.
The A828BT comes with a two slots battery charger that allows you to house the reader together with an additional battery.
The A828BT features a clip-on pistol grip handle. The handle is lightweight and simple to attach. It is durable, performing extremely well in multiple drop tests.

The A829 is a multiprotocol fully integrated UHF low power short range reader designed specifically to be used in desktop, point of sale or access control applications.
The A829 is available either in ETSI or FCC version. The ETSI version is fully compliant to the European Regulation ETSI EN 300 220 (869.525 MHz), while the FCC to the US telecommunication regulation FCC part 15 (902-928 MHz).
It is the reader solution to solve the problem of proximity reading/writing of tags and labels, where transponders are up to 1 metre distance from the reader.

The A829 supports ISO 18000-6B, Philips UCODE EPC 1.19 and EPC Class1 Gen2. Other UHF protocols may be available by firmware upgrade.
The A829 houses an integrated antenna and an USB interface for PC connection. It is a bus powered USB device designed to operate as a stand alone PC peripheral communicating via an USB serial port.

Applications:
- Point of sale applications
- Simple tag reading and programming
- Documents and items inventory management
- Access control

The CAEN A939 Vehicle Mount RFID Interface is a device that allows to identify and monitor the presence of a trailer via UHF RFID. It is a box that requires a 9-36VDC input and allows Bluetooth® class 2 / RS232 communications.

The A939 has an internal antenna that can be used for on-board badge identification of the driver and a connector for an external antenna. The external antenna can be mounted on the rear of the cab, thus allowing to read UHF tags located on the trailer surface up to 2m distance.

The A939 Vehicle Mount RFID Interface can be coupled with Bluetooth® enabled mobile devices, thus providing transfer of UHF RFID reading of tags via remote GPRS to a central server. If the coupled mobile device has a GPS on board, the complete system enables also geolocation and driver identification throughout the complete trip.

Applications:
- Identification of drivers, trailers and GPS position (geolocation) via coupled Bluetooth® device
- Fleet management of trucks
- Short and long range access control
- Waste management via identification of waste containers

A small device with great performance: within the range of AXESS TMC products for personnel ID and access control, XPocket opens new horizons for attendance recording and data collection. This reader meets all the specific requirements of companies and agencies whose employees are highly mobile, where there is often a need to monitor their activities while on the road or working off-site. XPocket is so small and light that it really does fit in the pocket. Fully functional and robust, this device makes no compromises when it comes to performance.

POTENTIAL APPLICATIONS
XPocket can be utilized in all service companies and also in companies which foresee itinerant personnel and off-site staff (representatives, agents, sales people, insurance surveyors, financial promoters, merchandisers, scientific informers, etc.); the following list shows some examples of the companies in which XPocket can provide a valid solution:
- Cleaning companies
- Construction sites
- Home assistance
- Employment agencies
- Facility managment companies
- Ship yards
- Public organizations, universities, schools
- Vehicle management companies
- Forest area control companies
